S4 a couple of issues ??

jerry

jerry

Old Git
Joined
May 12, 2006
Messages
2,985
Location
Cricklade
Bike
Multiple Monsters
rode bike yesterday noticed an oil leak but its very dirty old oil ,, today rode again and isolated it to the dry clutch unit ,,,,,, opened it up main seal looks fine and dry cant see how any oil would get in there unless there is another seal or O ring ???? plates were a little oily its not a flood but it aint right ?????




2nd issue is speedo ,, so instrument and cable are fine tested with hand drill ,, so can only be mechanical drive sender on front axle but that is brand New??????

examining the clutch its not the big seal between engine and gearbox clutch so its probably the seal on the main pushrod by the throwout bearing or one of the other Orings inside the gripers and spacer bush


its not from the slave as thats not black its red colour oil and its fresh




will drop front wheel and look at the speedo driver too tommorow ??????
gonna see if i can source some orings round here ?????


at least I have the Z900 to get around on or the little yamaha plano 110 scooter but the S4 is a totally different kind of buzz to ride its visceral ,,

The small seal in the gearbox shaft is cheap and easy to change, plus it can get damaged by removing the push rod.

The bearing behind it is also cheap but an absolute swine to remove so I wouldn't bother replacing it unless you know it to be bad.

Also, if fitting a new gearshaft seal, make sure it's in the right way round or the oil drips out into the clutch, potentially causing slippage but more embarrassingly smoke on startup after the oil has dripped onto your exhaust - don't ask how I know this... :look:

jerry said:
2nd issue is speedo ,, so instrument and cable are fine tested with hand drill ,, so can only be mechanical drive sender on front axle but that is brand New??????
Click to expand...

The 'bathtub effect' or 'bathtub curve' states that any apparatus has a very high chance of failure when first installed, the speedo drive might be brand new but that doesn't mean it isn't a duff one.

Problem with clutch is that a couple of o rings are not well marked on diagram number 15 is vague could be in 3 places and a lot of ducatis dont seem to bother with it ??? the 2 on the push rod by the slave are obvious and the seal in the pushrod end is an o ring not a seal


the speedo drive is packed solid with grease so will need cleaning out and testing


hmmm we will see
a

speedo drive seems ok when cleaned it was tight but im not convinced its ok and now the cable is bust too when i was testing it with the drive ,,,cable is easy to get Honda supply them for pea nuts but the drive ????

jerry said:
Problem with clutch is that a couple of o rings are not well marked on diagram number 15 is vague could be in 3 places and a lot of ducatis dont seem to bother with it ??? the 2 on the push rod by the slave are obvious and the seal in the pushrod end is an o ring not a seal
Click to expand...

Look at the gearbox parts - the seal and bearing that sit inside the gearbox shaft that the pushrod passes through.

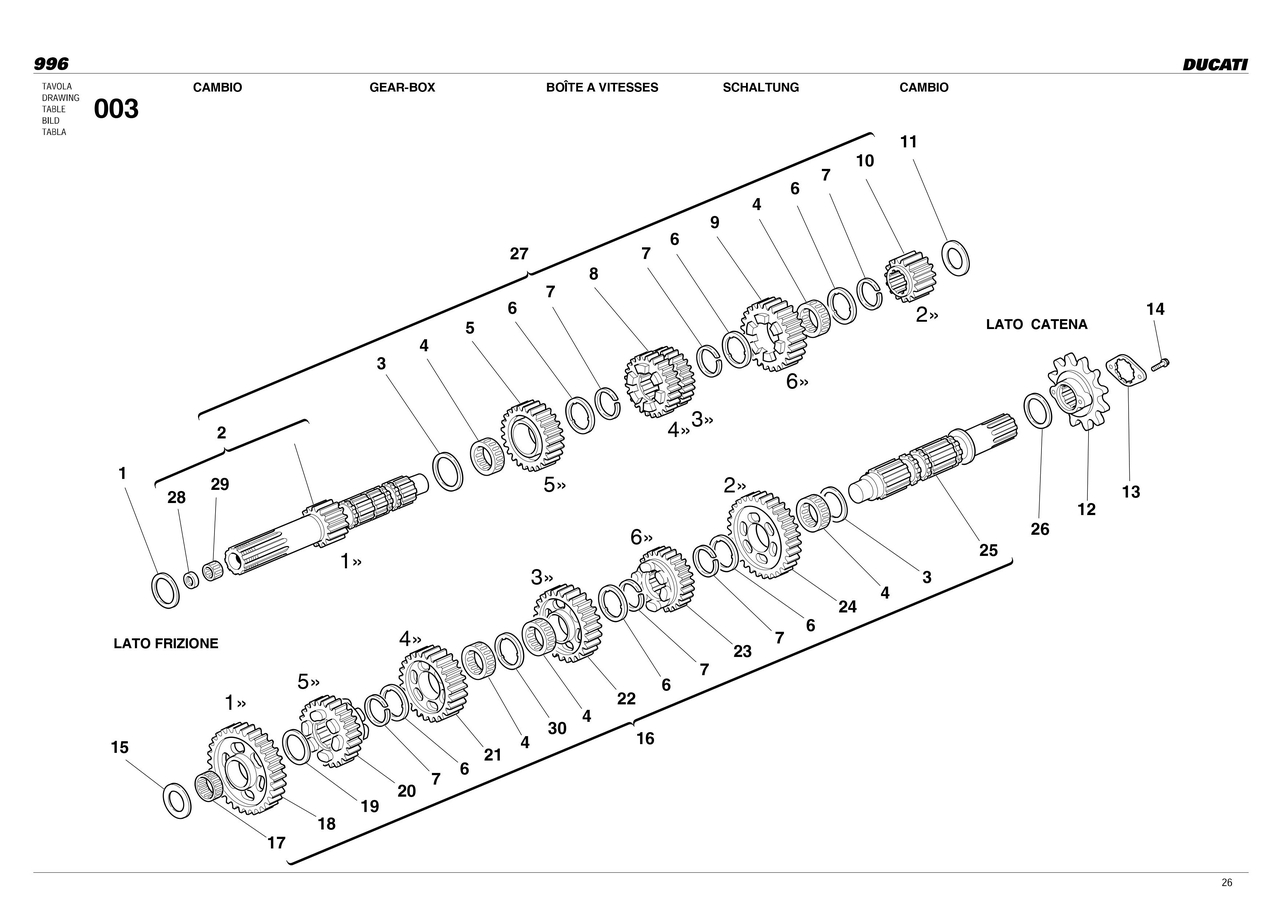

This is for 996 but is basically the same;



Specifically parts no. 28 - oil seal & 29 - bearing, if the oil seal is leaking you will get oil in your clutch.

Duke desmo that seal 28 and the bearing is solid is fine , although could replace 28 seal easily , its a little weep from somewhere i suspect Oring 32 and 15 on the actual clutch page section 002 in the manual although what its purpose is unclear at all ?????

You can get a kit with better quality o rings from Exactfit. I have one to fit to my S4 as it is leaking a bit from behind the clutch slave. So most likely the crankcase o ring. Costs a couple of quid and they will send it next day post.

well the clutch is back together , added some fresh O rings and gave is a really good clean so when i ride the bike I can check it ???

i can ride the bike with the speedo inner removed until I can sort out the axle drive and a new cable?? might be able to get drive unit it here e the cable is easy £6 here if not will bring one from UK as well as the gearbox sprocket cover that im missing .

other than that the bike is finally finished with full refurb after 4 years including covid delays ,, new silver frame and wheels , all CF re lacqeured shiny and paintwork all refreshed ,, engine repainted and checked over etc new belts ,new filters , new fuel hoses and quick connects , rebuilt injectors new fluids new nuts and bolts etc , Ohlins bits all serviced it looks like a new showroom bike

i put the DP performance stage 2 ECU in as its tidier less cables etc than PC5 and standard ECU even though I have some awesome maps in it .... Bike runs sweet with DP ecu so happy

so rode bike 10 miles today clutch still leaking it is the little layshaft seal number 28 in parts book also need a new slave seal number 27

all are available locally when shops re-open after new year

the speedo drive will be ordered in UK its about £56 new but on ebay many people selling crap used ones for £50-80 !!!!FFS

jerry said:
clutch still leaking it is the little layshaft seal number 28 in parts book
Click to expand...

It'll pick out easy enough with a pointy pick, tap the new one in up to the bearing with a small socket but make sure you fit it with the 'lip' pointing inwards (toward the left side of the bike) or it'll leak again.

Also, you don't need a Ducati specific part, it's a readily available oil seal you can get from a bearing/seal supplier though I doubt it's expensive even at Ducati prices.

Dukedesmo said:
It'll pick out easy enough with a pointy pick, tap the new one in up to the bearing with a small socket but make sure you fit it with the 'lip' pointing inwards (toward the left side of the bike) or it'll leak again.

Also, you don't need a Ducati specific part, it's a readily available oil seal you can get from a bearing/seal supplier though I doubt it's expensive even at Ducati prices.
Click to expand...

I broke my old Snap OFF pick tool trying to get the seal out ???? Thailand shuts down for 5 days over New year so no suppliers are open at the moment

The 3 oil seal and bearing shops i went to did not have small seal sizes I need but Ducati shop opens up again on 8th and he should have

2001 slave seal original outer 16x8.8x3mm ,,, push rod bearing O ring 11.5 x 2mm and push rod layshaft seal 12x8 x3mm

Travelled 30 miles to Ducati mechanic shop today the guy told me on phone he had all the seals and orings I need but when i got there He had Zilch ,, so frustrating ,,, now going to give up and get them all in Uk when Im back in 3 weeks , so next time im in thailand I will have the stuff to seal the leaks

at least the bike is 99% perfect ,, and I have the Z900 to ride anyway

Im ordering packs of green Viton O rings in UK cheaper than Ducati as you get 10 for price of 1 from Ducati

but checking sizes??

Clutch pushrod control Pin is 11.6mm OD 8mm ID cross section 1.8mm

Fuel Tank sender sealing O ring is 28mm OD 21.2 mm ID cross section 3.55mm

Dukedesmo said:
It'll pick out easy enough with a pointy pick, tap the new one in up to the bearing with a small socket but make sure you fit it with the 'lip' pointing inwards (toward the left side of the bike) or it'll leak again.

Also, you don't need a Ducati specific part, it's a readily available oil seal you can get from a bearing/seal supplier though I doubt it's expensive even at Ducati prices.
Click to expand...

is it a single lip seal or double and is it spring or springless seal ?????

can order online 12 OD 8 ID 3mm wide for £ 3 I would get 2

jerry said:
is it a single lip seal or double and is it spring or springless seal ?????

can order online 12 OD 8 ID 3mm wide for £ 3 I would get 2
Click to expand...

Can't remember for certain but I think it's single seal & no spring, also because at that size I don't think there's space for a spring or 2 seals?

To add, I think this is the part; https://simplybearings.co.uk/shop/p...-Springless-Design-VC-Style/product_info.html

but then, they're not a lot more from a Ducati dealer either; https://www.bike-parts-ducati.com/ducati-motorcycle/assignment_spare_parts/93040491A

Last edited:
Yes Duke deso 1 oil seal Duacti price is about £5

Im ordering packs of green Viton O rings in UK cheaper than Ducati as you get 10 for price of 1 from Ducati

but checking sizes?? I think they are ...........

Clutch pushrod control Pin is 11.6mm OD 8mm ID cross section 1.8mm

Fuel Tank sender sealing O ring is 28mm OD 21.2 mm ID cross section 3.55mm
