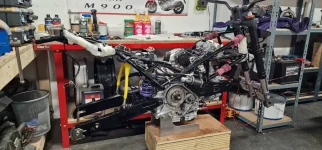

Ben's 900 Monster build

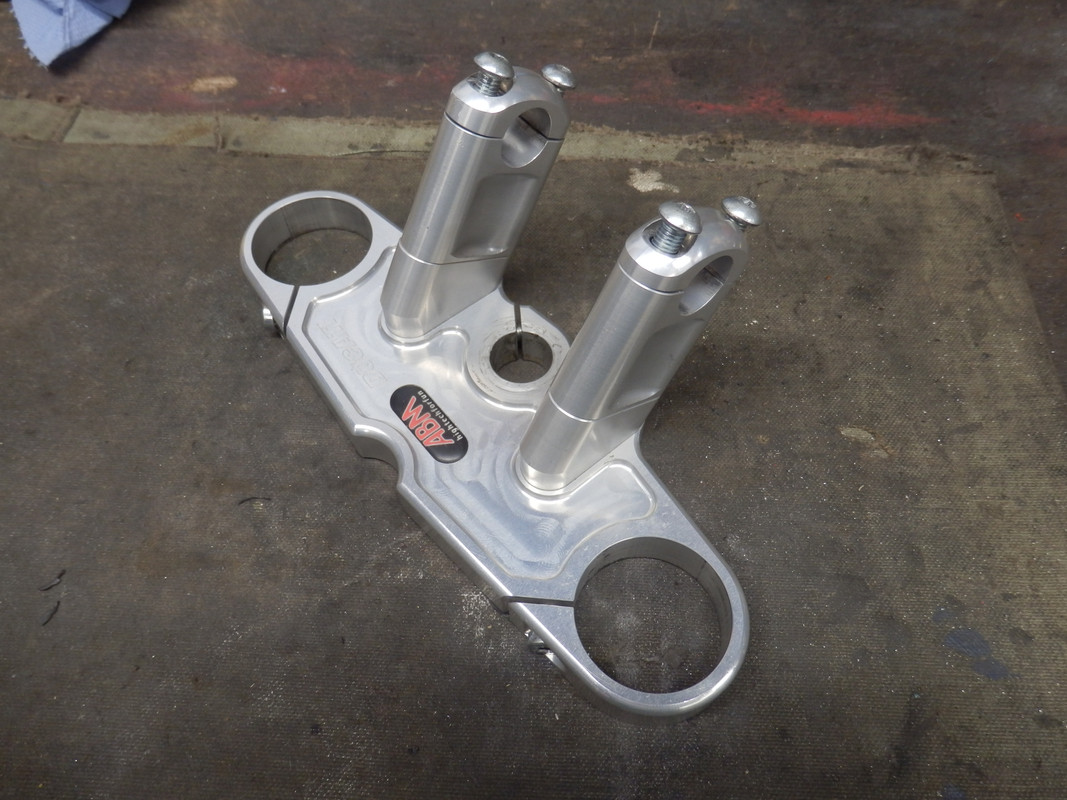

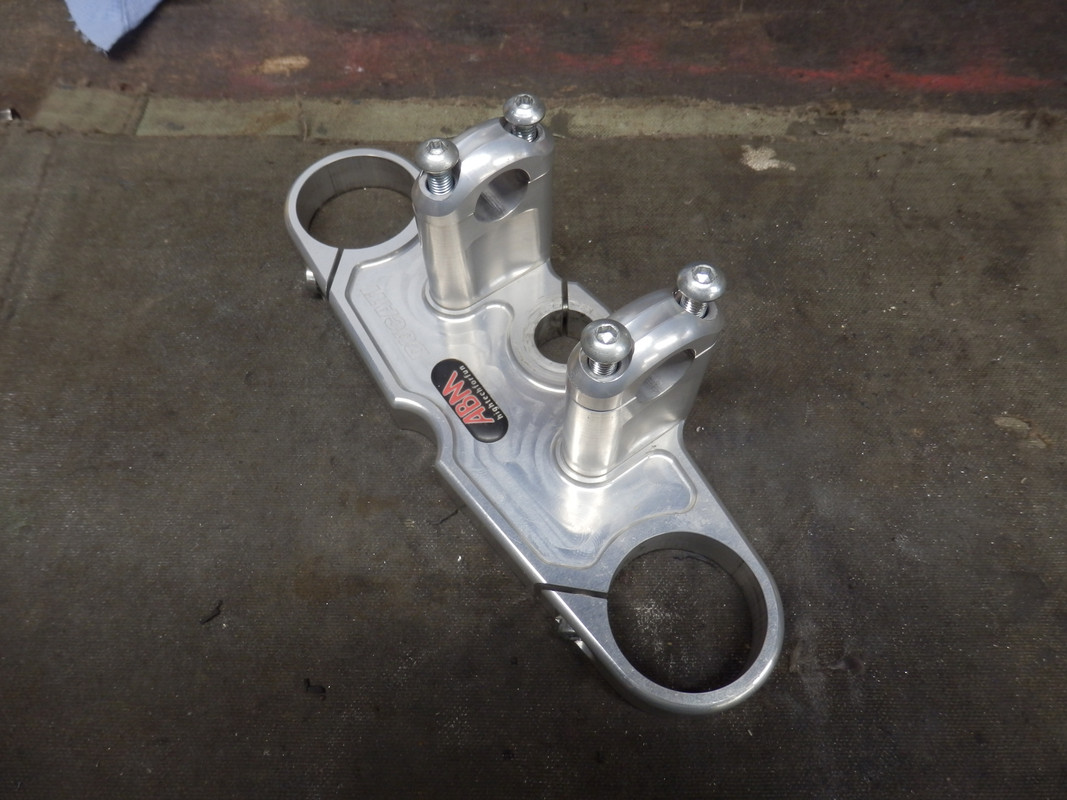

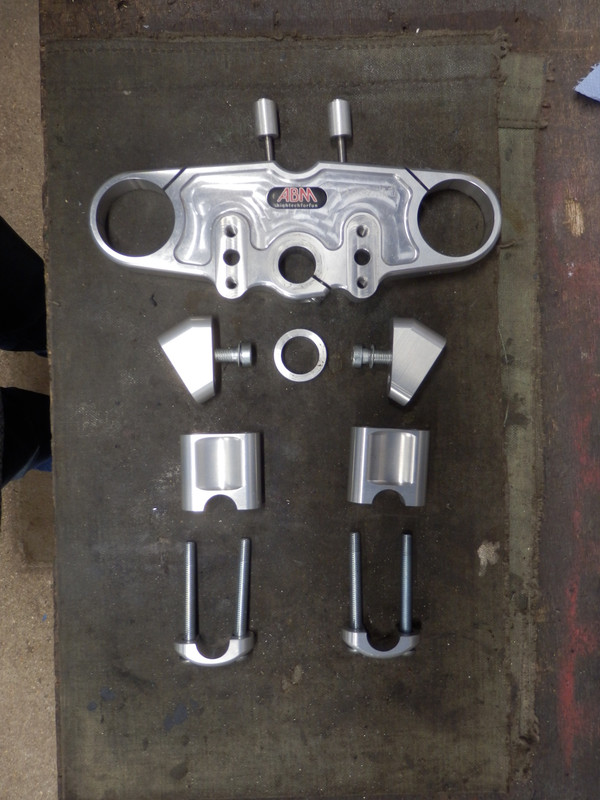

Unfortunately Nasher's lovely ABM yoke has 30mm offset if it fits a 1000SSie.
Ben's yokes are 25mm offset.






Yes, I should have realised that is how it can be more 'offset' than that of a Monster.

Are they stainless bolts in the callipers? Don’t think it’s a good idea I only use titanium on brakes due to the heat cycling issue.

Pooh

Can't see why stainless bolts should be a problem?

They may not be as high tensile as the originals but, at the size they are I reckon they're well over any strength requirement and I can't imagine the temperature causing any issues?

I've certainly used them without any bother.

Dukedesmo said:
Can't see why stainless bolts should be a problem?

They may not be as high tensile as the originals but, at the size they are I reckon they're well over any strength requirement and I can't imagine the temperature causing any issues?

I've certainly used them without any bother.
Click to expand...

That was kinda my thinking too but I never want to appear arrogant so thought I'd check out what the reasoning was behind the caution

900Rebuilder said:
Can you please explain? I don't have SS on the mounts but thought / assumed these would be ok...
Click to expand...

What you have is a standard early Monster yoke with 25mm offset.
The offset is the distance between a line drawn through the centres of the fork leg holes and the centre of the stem hole.
In other words the fork legs will be 25mm in front of the steering stem (centres).

The later SS has 30mm offset so can't be used with early Monster bottom yokes and indeed shouldn't even be used as a pair as the different offset will upset the geometry.

Later Monsters were changed to 30mm offset with the introduction of the "ST" frame, whereupon they became interchangeable with SS yokes.

I think I'm right in saying the early SS had 30mm offset too?

No problem with stainless caliper halves bolts, but the kits usually have standard cap heads instead of the original low heads. Only trouble with stainless low heads is the increased likelihood of chewing the Allen socket out getting it up to the required torque.
I had this problem with button head stainless disc bolts which had insufficient socket depth and would not take the correct torque. Best cure is to use steel or Titanium bolts.

I always use Ti these days anyway, especially on un-sprung parts.

RSR Moto are purveyors of fine Titanium bolts and also carbon fibre parts.
They will be advertising on here in 2024.

Last edited:
I use ss yolks on my (94 framed) heap but also have clip ons and rearsets. I think Ducati went for the 25mm off set due to the upright sitting position on a Monster, as 851s (with the same frame) used 30mm offset.
Re stainless fixing, beware some are rubbish and rounding out socket heads can be an issue, also had bad experiences when used in Ali components suffering I think from electrolytic corrosion. Ti bolts (grade 5) are the job, but be warned Ti is addictive.

When I said ss yolks, I meant taken off a 900ss.

Mr Gazza said:
RSR Moto are purveyors of fine Titanium bolts and also carbon fibre parts.
They will be advertising on here in 2024.
Click to expand...

Great news about RSR Moto, I can vouch for the quality of their products and my (ex) bike is on their 'hall of fame' ;-)

Last edited:
Mark64 said:
Great news about RSR Moto, I can vouch for the quality of their products and my (ex) bike is on their 'hall of fame' ;-)
Click to expand...

I've just taken stock of some of their titanium front disc bolts which are great quality but I couldn't find any listed for the rear disc of the M900. They also didn't come with any washers so I'll have to check to see if they are required or not.

900Rebuilder said:
I've just taken stock of some of their titanium front disc bolts which are great quality but I couldn't find any listed for the rear disc of the M900. They also didn't come with any washers so I'll have to check to see if they are required or not.
Click to expand...

No washers required, as for the rear; M8 x 20 IIRC but I swapped mine for plated cap heads from 916 (M8 x 14) as they are a nice low profile and steel (need to be magnetic) due to using a speed sensor on them for the Translogic dash.

I recently bought a set myself. 12 for the front and 6 for the back.
He does do a rear set and a front set as it happens. All the same size on mine, M8 x 20.
I like that they are the same pattern head as originals but sparklier. Flanged cap heads.

I was so impressed with what a nice company it is to deal with that we got into a conversation and they agreed to put an ad on our forum banner.
