ABM Top Yoke Kit

Nasher

Nasher

Registered
Joined
Jul 18, 2014
Messages
1,518
Location
Portsmouth
Bike
M900

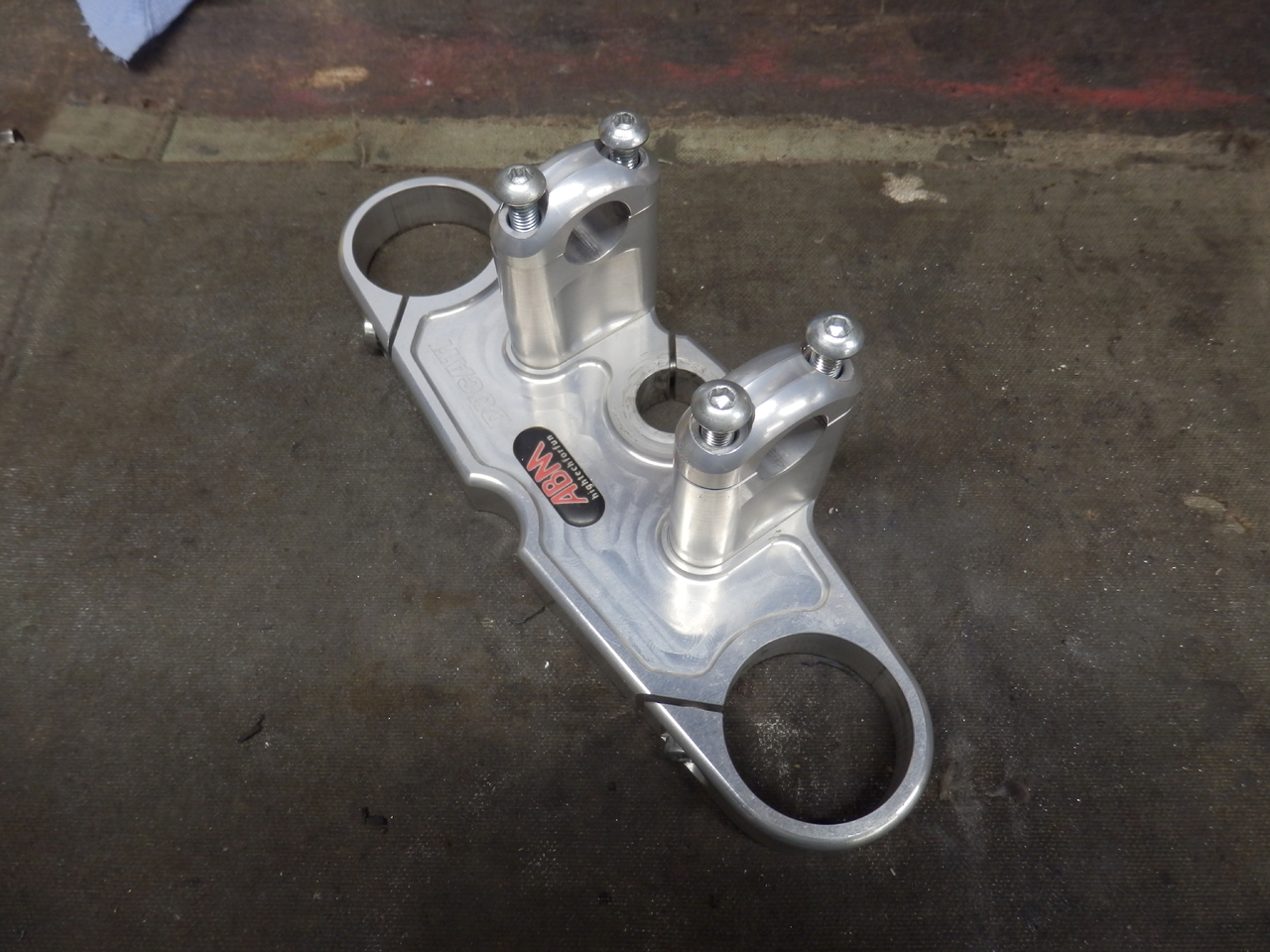

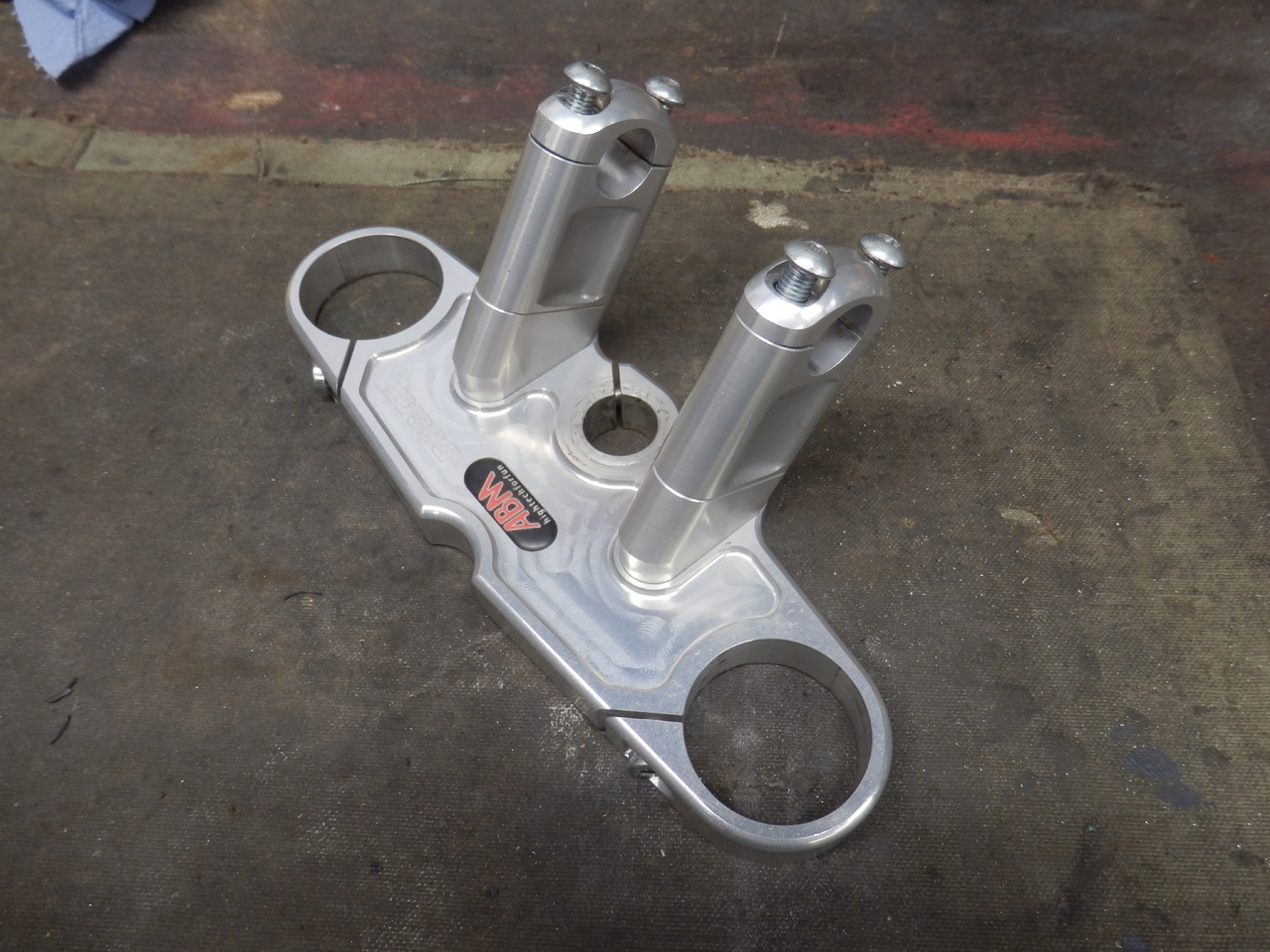

I have this ABM top yoke kit which I believe was originally intended to convert early SS bikes with Clip-ons to traditional handlebars.

I purchased it used and never fitted it.

The fork holes are 50mm
The top nut hole is 24mm
Offset 30mm

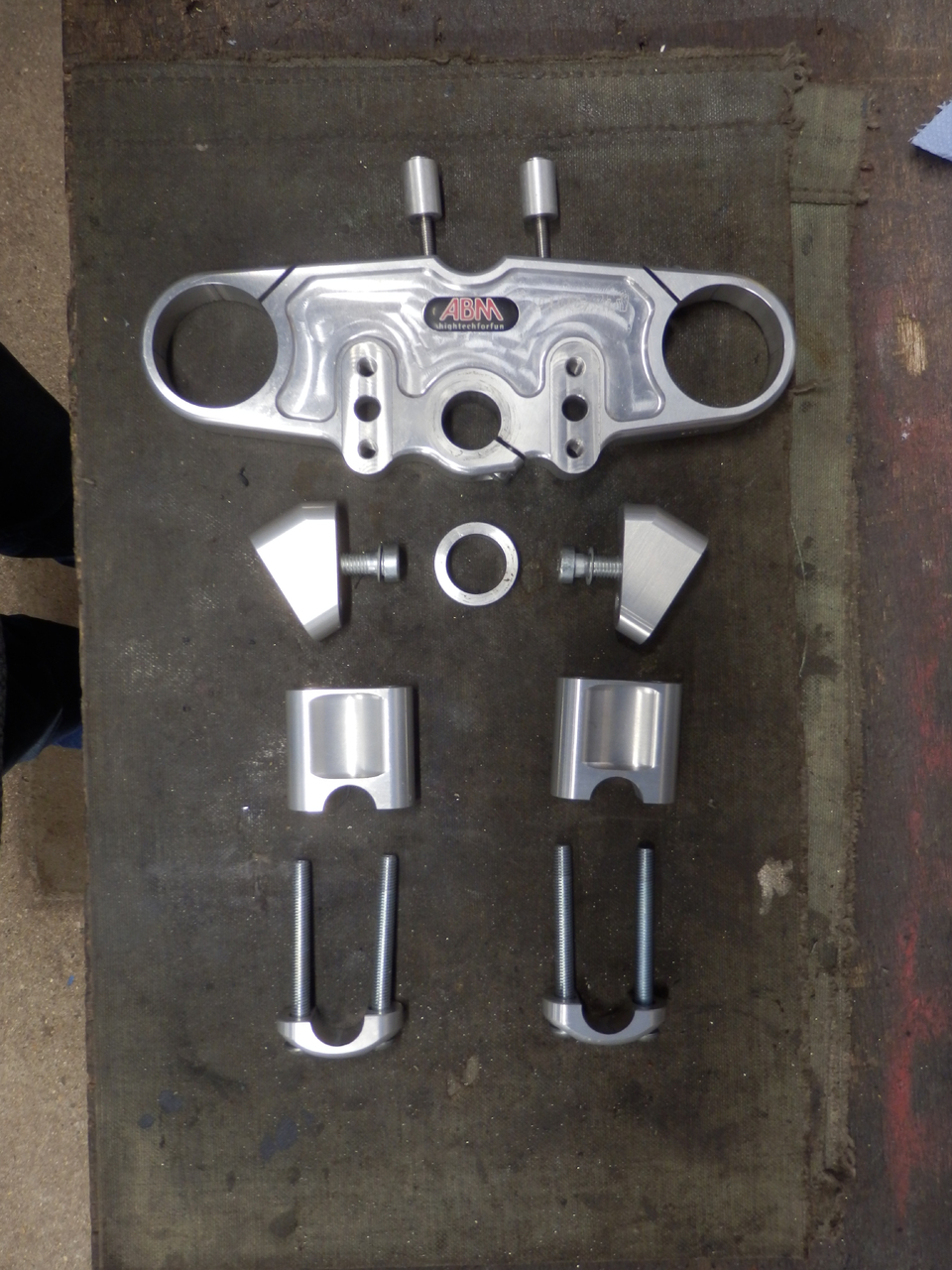

It comes with all the fixtures and fitting shown which give several options for handlebar position.

I'm sorry, but that's all I know about it.

£150 collected from Clanfield Hants, or + £7.50 fully insured postage and packing.






They could be a nice upgrade for an early carbie Monster. Isn't the offset different on the SS vs Monster though? Idk but very still good quality bits. Glws

Last edited:
Monster offset was 25mm up until about 2001/2 when the offset was changed to 30mm along with the frame change to the "ST" type with rod rear suspension link.
All SS are 30mm offset.

So Monster hoop models = 25mm offset.
Monster rod link models =30mm offset.

Handy having all the riser options on those as the SS forks protrude above the top yoke a lot to mount the clip-ons.

What is the finish Nasher? Anodised or polished?

Deffo early carby SS so maybe will plop onto a carbie Monster, pre 916 style top nut. Not sure if the offset was different then or not but my guess it'd be 851/888
